技术参数 TECHNICAL PARAMETERS
适用介质:清水、内燃机防冻液
介质压力:≤0.3MPa
适用温度：-35～135℃
水泵轴转速:φ12≤7200r/min；φ16≤6500r/min；φ20≤5000r/min
材质 MATERIAL
冲压件、弹簧：不锈钢
橡胶件：丁腈橡胶、氢化丁腈橡胶，长期工作温度100℃以上，建议采用氢化丁腈橡胶
静止环：石墨/碳化硅
旋转环：碳化硅

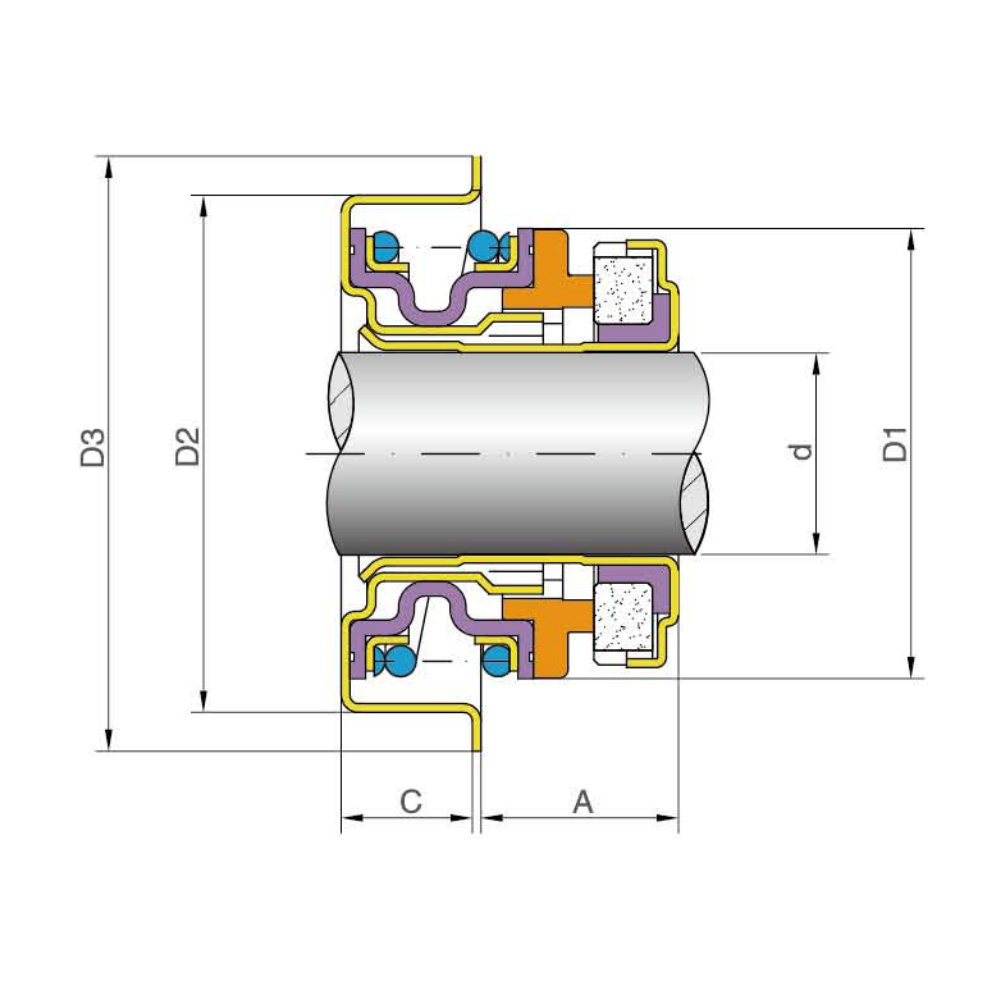

产品规格表 PRODUCT SPECIFICATIONS TABL
型 号 Model | d | A 压装尺寸 Work | C | D1 | D2 | D3 |
| C12F-0 | 12 | 8.9 | 7.6 | 26.5 | 30 | 35 |
| C12F-3 | 12 | 8 | 8.5 | 26.5 | 30 | 35 |
| C12F-4 | 12 | 9.2 | 7.3 | 26.5 | 30 | 35 |
| C12F-5 | 12 | 9.6 | 7.6 | 26.5 | 30 | 35 |
| C12F-6 | 12 | 8.8 | 7.7 | 26.5 | 38.1 | 43.6 |
| C12F-7 | 12 | 9.3 | 8 | 26.5 | 39.5 | 43.6 |
| C12F-8 | 12 | 9.3 | 8 | 26.5 | 30 | 35 |
| C12F-9 | 12 | 7.7 | 8.5 | 26.5 | 30 | 35 |
| C12F-10 | 12 | 7.1 | 8.5 | 26.5 | 30 | 35 |
| C16J-1 | 15.918 | 10.9 | 8 | 31.5 | 36.5 | 41 |
| C16J-2 | 15.918 | 11.84 | 7.1 | 31.5 | 34.2 | 43.6 |
| C16J-5 | 15.918 | 10.4 | 8 | 31.5 | 36.5 | 41 |
| C16J-6 | 15.918 | 10.9 | 8 | 31.5 | 38.1 | 43.6 |
| C16J-7 | 15.918 | 10.8 | 8 | 31.5 | 36.4 | 41 |
| C16J-8 | 15.918 | 10.8 | 8 | 31.5 | 38.1 | 43.6 |
| C16J-9 | 15.918 | 10.9 | 8 | 31.5 | 36.5 | 41 |
| C16J-10F | 15.918 | 12.3 | 7 | 31.5 | 34.2 | 39.5 |
| C20-1-b | 20 | 11.9 | 10.6 | 36.5 | 38.1 | 43.6 |
| C20-2-c | 20 | 12 | 10.6 | 36.5 | 52 | 58 |
| C20-3 | 20 | 12.5 | 10 | 36.5 | 40 | 46 |
| C20-4G | 20 | 14.4 | 8 | 36.5 | 38.1 | 43.6 |
