技术参数 TECHNICAL PARAMETERS
适用介质:清水、内燃机防冻液
介质压力:≤0.3MPa
适用温度：-35～135℃
水泵轴转速：Φ12<5200r/min;Φ15<5000r/min
·Φ16<4800r/min;Φ17<4500r/min;Φ20<4000r/min
材质 MATERIAL
冲压件、弹簧:不锈钢
橡胶件:丁腈橡胶、氢化丁腈橡胶,长期工作温度100°C以上,建议采用氢化丁腈橡胶。
静止环:石墨/碳化硅
旋转环:陶瓷/碳化硅

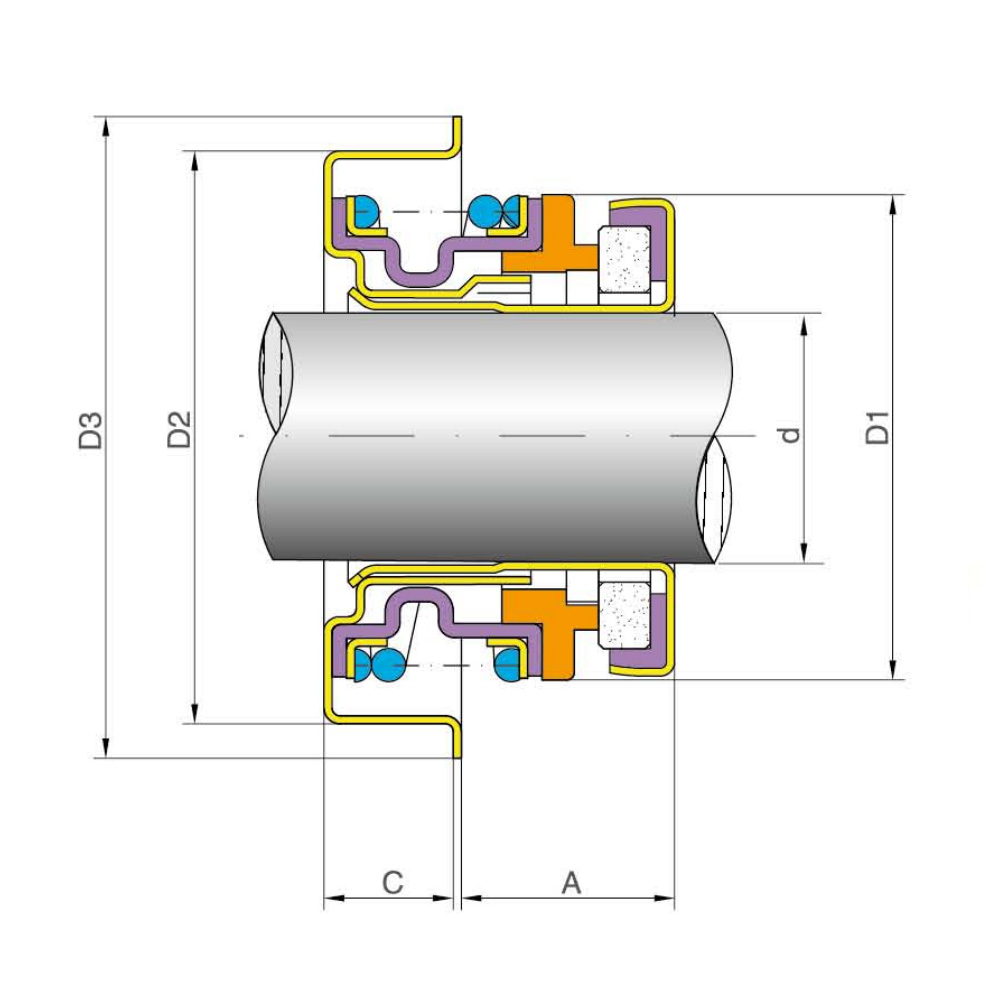

产品规格表 PRODUCT SPECIFICATIONS TABLE
型 号 Model | d | A 压装尺寸 Work dimensions | C | D1 | D2 | D3 |
| C12-0 | 12 | 9.3 | 8 | 26.5 | 30 | 35 |
| C12-2 | 12 | 9.2 | 8 | 26.5 | 30 | 35 |
| C12-2U | 12.7 | 9.2 | 6.3 | 26.5 | 28.5 | 35 |
| C12-3 | 12 | 7.1 | 8.5 | 26.5 | 30 | 35 |
| C12-3U | 12 | 9.3 | 8 | 26.5 | 30 | 35 |
| C12-4 | 12 | 8.2 | 7.1 | 26.5 | 30 | 35 |
| C12-6 | 12 | 9.2 | 6.6 | 26.5 | 30 | 35 |
| C12-7 | 12 | 9.3 | 8 | 26.5 | 32 | 37 |
| C12-8 | 12 | 9.3 | 8 | 26.5 | 33.6 | 36.5MIN |
| C12-9 | 12 | 7.5 | 7.1 | 26.5 | 30 | 35 |
| C12-13 | 12 | 8.7 | 7.6 | 26.5 | 30 | 35 |
| C12-15 | 12 | 9.3 | 8 | 26.5 | 36.5 | 41 |
| C12-19 | 12 | 9.2 | 8 | 26.5 | 38.1 | 43.6 |
| C12-23 | 12 | 9.2 | 6 | 26.5 | 30 | 35 |
| C12-24 | 12.7 | 9.2 | 8 | 26.5 | 38.1 | 43.6 |
| C12-26 | 12 | 8.2 | 8 | 26.5 | 30 | 35 |
| C12-27 | 12 | 7.2 | 7.6 | 26.5 | 30 | 35 |
| C12-28 | 12 | 9.3 | 8 | 26.5 | 39.5 | 43.6 |
| C12-30 | 12 | 8.8 | 6.3 | 26.5 | 30 | 35 |
| C12-31 | 12 | 9.3 | 8 | 26.5 | 28.6 | 32MIN |
| C13-1 | 13 | 8.9 | 8 | 26.5 | 30 | 35 |
| C13-2 | 13 | 8.9 | 8 | 26.5 | 32 | 37 |
| C15-1 | 15 | 10.6 | 8 | 28.8 | 36.5 | 41 |
| C15-2 | 15 | 10.6 | 8 | 28.8 | 30 | 35 |
| C16A-0 | 15.918 | 10.9 | 8 | 31.5 | 36.5 | 41 |
| C16A-4 | 15.918 | 10.9 | 8 | 31.5 | 35 | 41 |
| C16A-4U | 15.918 | 11.1 | 6.5 | 31.5 | 34.2 | 39.5 |
| C16A-5U | 15.918 | 10.9 | 8 | 31.5 | 36.45 | 41 |
| C16A-5 | 15.918 | 10.9 | 8 | 31.5 | 38.1 | 43.6 |
| C16A-6 | 15.918 | 11.84 | 7 | 31.5 | 34.2 | 39.5 |
| C16A-7 | 16 | 10.9 | 8 | 31.5 | 36.5 | 41 |
| C16A-11 | 15.918 | 10.9 | 8 | 31.5 | 39.5 | 43.6 |
| C16A-12 | 15.918 | 10.9 | 8 | 31.5 | 33.5 | 38 |
| C16A-13 | 15.918 | 10.9 | 8 | 31.5 | 55 | 62 |
| C16A-16 | 15.918 | 10.8 | 7.2 | 31.5 | 36.5 | 41 |
| C16A-17 | 15.918 | 9.3 | 7 | 31.5 | 34.2 | 39.5 |
| C16A-18 | 15.918 | 11.8 | 5.7 | 31.5 | 34.2 | 39.5 |
| C16A-21 | 16 | 11.8 | 7 | 31.5 | 36.5 | 41 |
| 5301-2 | 15.918 | 10.9 | 8 | 31.5 | 36.55 | 41 |
| C17A-0 | 17 | 13.6 | 8 | 33.5 | 35 | 41 |
| C20A-2 | 20 | 11 | 9.3 | 37 | 40 | 44 |
