技术参数 TECHNICAL PARAMETERS
适用介质:清水、内燃机防冻液
介质压力:≤0.3MPa
适用温度：-35～135℃
水泵轴转速: φ12≤6500r/min；φ15≤6200r/min； φ16≤6000r/min；
材质 MATERIAL
冲压件、弹簧：不锈钢
橡胶件：丁腈橡胶、氢化丁腈橡胶，长期工作温度100℃以上，建议采用氢化丁腈橡胶。
静止环：石墨/碳化硅
旋转环：陶瓷/碳化硅

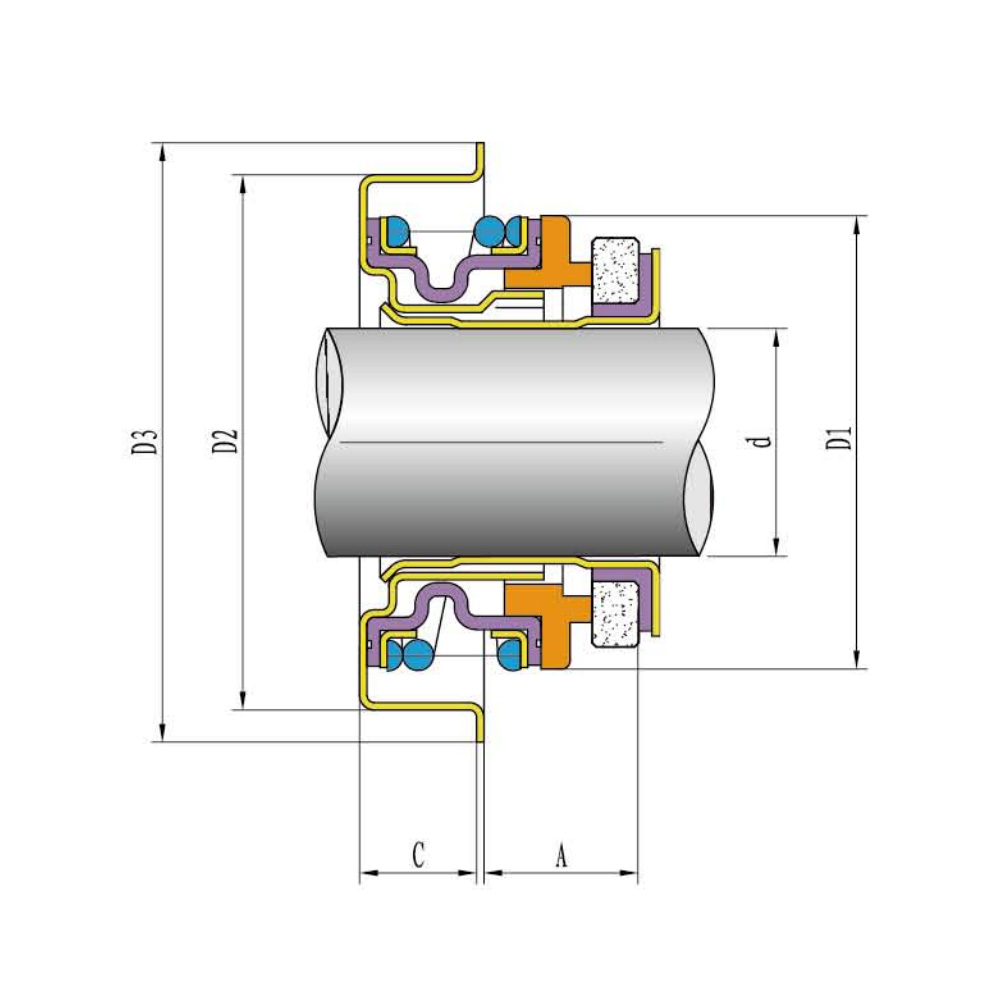

产品规格表 PRODUCT SPECIFICATIONS TABLE
型 号 | d | A 压装尺 | C | D1 | D2 | D3 | 备 注 Remark |
| C10G-0 | 10 | 4.71 | 8.9 | \ | 30 | 35 | |
| C12G-1QTQ | 12/12.038 | 8.7 | 7.6 | 26.5 | 30 | 35 | |
| C12G-3 | 12 | 9.1 | 8 | 26.5 | 30 | 35 | |
| C12G-5 | 12.038 | 8.9 | 8 | 26.5 | 38.1 | 43.6 | |
| C12G-8 | 12 | 7.1 | 7.5 | 26.5 | 30 | 35 | |
| C12G-9 | 12.038 | 7.1 | 8 | 26.5 | 30 | 35 | |
| C12G-10TQ | 12 | 7.1 | 7.5 | 26.5 | 30 | 35 | |
| C12G-11TQ | 12.7 | 7.1 | 7.5 | 26.5 | 30 | 35 | |
| C12G-12 | 12.038 | 6.37 | 9.8 | 26.5 | 39.5 | 43.6 | |
| C12G-13 | 12.038 | 8.9 | 8 | 26.5 | 47.6 | 54 | |
| C12G-14 | 12 | 9.1 | 8 | 26.5 | 47.6 | 54 | |
| C12G-16 | 12.7 | 10.54 | 6.8 | 26.5 | 28.6 | 35 | |
| 5306-1 | 12 | 9.3 | 8 | 26.5 | 28.6 | 32 | |
| C15G-1 | 15 | 9.3 | 8.2 | 28 | 36.5 | 41 | |
| C15G-2 | 15 | 10.7 | 8 | 28 | 36.5 | 41 | |
| 5302-2 | 15 | 12.3 | 7 | 28 | 36.55 | 41 | |
| C16G-0 | 15.918 | 10.8 | 8 | 31.5 | 36.5 | 41 | MS-1175 |
| C16G-1 | 15.918 | 10.8 | 8 | 31.5 | 38.1 | 43.6 | MS-1160 |
| C16G-3 | 15.918 | 10.8 | 8 | 31.5 | 38.6 | 43.6 | MS-1433 |
| C16G-4 | 15.918 | 10.8 | 8 | 31.5 | 39.5 | 43.6 | MS-1308 |
| C16G-5 | 15.918 | 10.7 | 8.5 | 31.5 | 38.1 | 43.6 | |
| C16G-6 | 15.918 | 10.7 | 8.5 | 31.5 | 36.5 | 41 | |
| C16G-7 | 15.918 | 10.8 | 8 | 31.5 | 47.7 | 53 | |
| 5303-1 | 15.918 | 12.3 | 7 | 31.5 | 38.1 | 43.6 | |
| 5304-1 | 15.918 | 12.3 | 7 | 31.5 | 39.5 | 43.6 |
