技术参数 TECHNICAL PARAMETERS
材质(MATERIAL)：3003-H112
机械性能(Mechanical property):GB/T6892-2000
抗拉强度(Tensile Strength):>90
条件屈服强度(Offset yield strength):>30
延伸率%(Elongation):>22

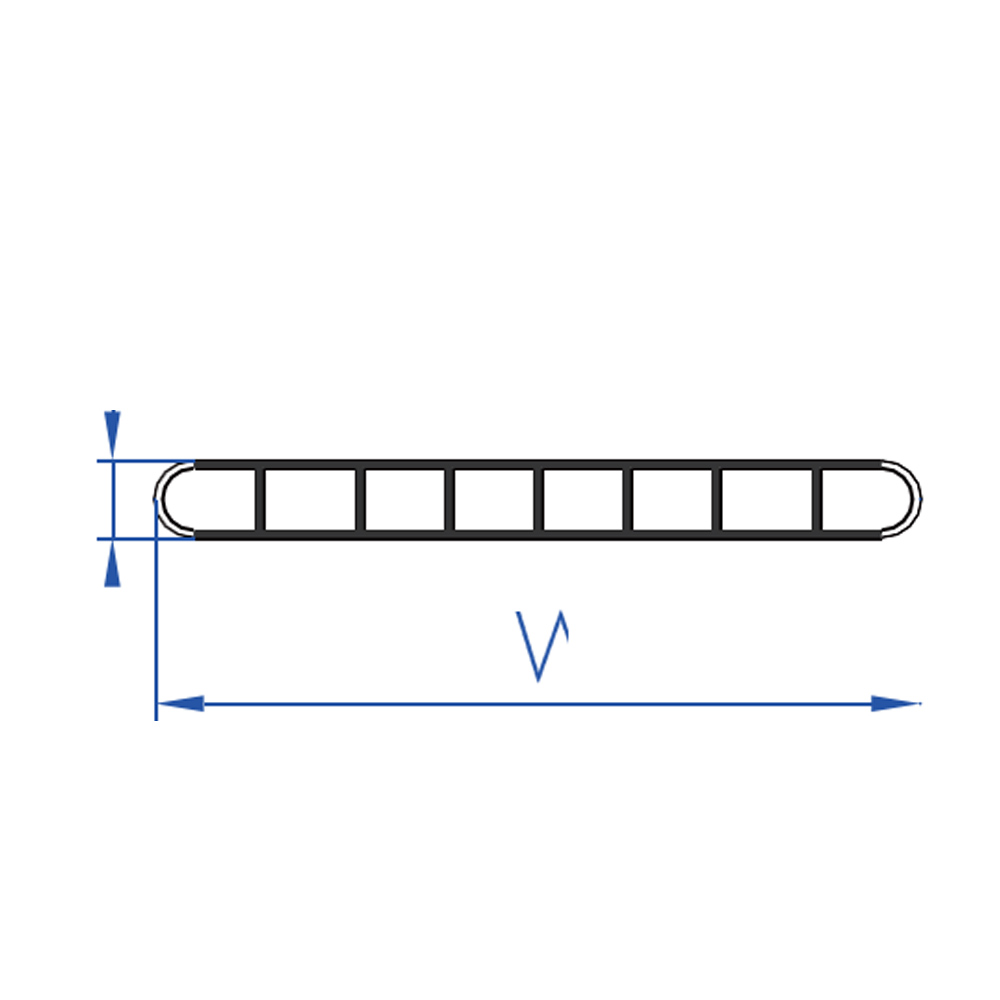

产品规格表 PRODUCT SPECIFICATIONS TABLE
| 型号Model | 宽度（W） | 厚度（H） |
16*5-2孔/Holes | 16 | 5 |
22*5-3孔/Holes | 22 | 5 |
24*4-7孔/Holes | 24 | 4 |
26*5-5孔/Holes | 26 | 5 |
30*3-5孔/Holes | 30 | 3 |
30*5-8孔/Holes | 30 | 5 |
30*6-7孔/Holes | 30 | 6 |
30*7-3孔/Holes | 30 | 7 |
30.2*4.15-8孔/Holes | 30.2 | 4.15 |
32*5-3孔/Holes | 32 | 5 |
36*3-10孔/Holes | 36 | 3 |
36.6*6-7孔/Holes | 36.6 | 6 |
38*6-4孔/Holes | 38 | 6 |
39.5*8-4孔/Holes | 39.5 | 8 |
40*6-6孔/Holes | 40 | 6 |
41*6-4孔/Holes | 41 | 6 |
41*6-6孔/Holes | 41 | 6 |
41*6-8孔/Holes | 41 | 6 |
42*3.5-13孔/Holes | 42 | 3.5 |
42*6-11孔/Holes | 42 | 6 |
43*6-6孔/Holes | 43 | 6 |
48*6-7孔/Holes | 48 | 6 |
48*6-8孔/Holes | 48 | 6 |
50*3.3-44孔/Holes | 50 | 3.3 |
50*6-4孔/Holes | 50 | 6 |
50*6-7孔/Holes | 50 | 6 |
52*6-4孔/Holes | 52 | 6 |
52*6.5-6孔/Holes | 52 | 6.5 |
54*3-10孔/Holes | 54 | 3 |
60*3-10孔/Holes | 60 | 3 |
62*6-4孔/Holes | 62 | 6 |
62*6-6孔/Holes | 62 | 6 |
62*6-8孔/Holes | 62 | 6 |
62*6.5-8孔/Holes | 62 | 6.5 |
64*6-6孔/Holes | 64 | 6 |
64*6-9孔/Holes | 64 | 6 |
64*8-11孔/Holes | 64 | 8 |
65*5-4孔/Holes | 65 | 5 |
65*6-10孔/Holes | 65 | 6 |
65*8-6孔/Holes | 65 | 8 |
70*7-9孔/Holes | 70 | 7 |
88*4.7-42孔/Holes | 88 | 4.7 |
