技术参数 TECHNICAL PARAMETERS
材质(MATERIAL)：3003-H112
机械性能(Mechanical property):GB/T6892-2000
抗拉强度(Tensile Strength):>90
条件屈服强度(Offset yield strength):>30
延伸率%(Elongation):>22
产品规格表 PRODUCT SPECIFICATIONS TABLE

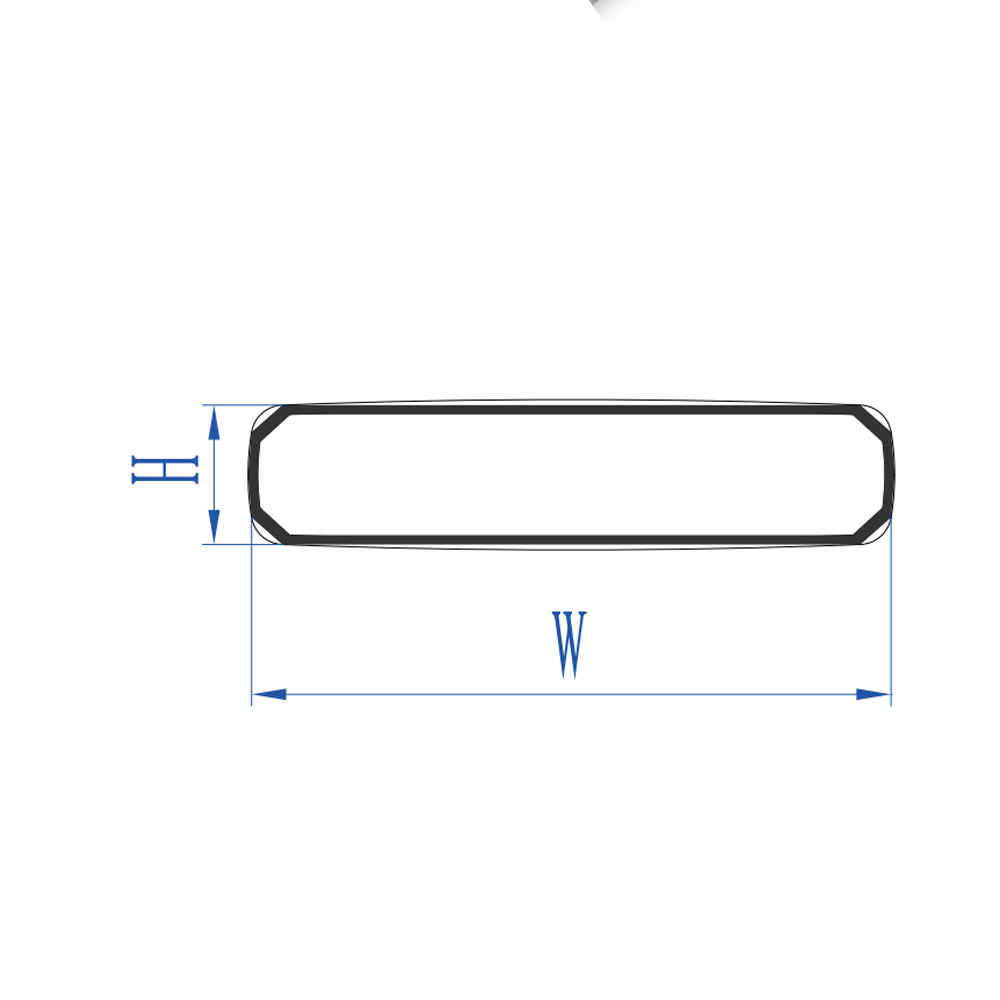

| 型号 (Model) | 宽度 (r) | 厚度 (h) |
|---|---|---|
| 18*9-1孔/Holes | 18 | 9 |
| 25*6-11孔/Holes | 25 | 6 |
| 27*8-1孔/Holes | 27 | 8 |
| 30*7.5-1孔/Holes | 30 | 7.5 ±3.0 |
| 30*8-1孔/Holes | 30 | 8±0.1 |
| 32*7.8-1孔/Holes | 32 | 7.8 ±3.0 |
| 32*7.9-1孔/Holes | 32 | 7.9 ±3.0 |
| 32*8-1孔/Holes | 32 | 8 ±3.0 |
| 32*8.15-1孔/Holes | 32 | 8.15±0.06 |
| 36.6*10.1-1孔/Holes | 36.6 | 10.1 |
| 38*8.08-1孔/Holes | 38 | 8 |
| 40*7-1孔/Holes | 40 | 7 |
| 40*8.5-1孔/Holes | 40 | 8.5 |
| 41*8-1孔/Holes | 41 | 8 |
| 45*9-16*8-1孔/Holes | 45 | 9 |
| 50*8.08-1孔/Holes | 46 | 8 |
| 50*8.1-1孔/Holes | 50 | 8 |
| 50*8.5-1孔/Holes | 50 | 8.1 |
| 50*10.1-1孔/Holes | 50 | 10.1 |
| 58*8-1孔/Holes | 58 | 8 |
| 61.5*8.5-1孔/Holes | 61.5 | 8.5 |
| 62*6-1孔/Holes | 62 | 6 |
| 64*8.08-1孔/Holes | 64 | 8 |
| 64*8.1-1孔/Holes | 64 | 8.1 |
| 65*8.35-1孔/Holes | 65 | 8.35 |
| 65*10-1孔/Holes | 65 | 10 |
| 80*7-1孔/Holes | 80 | 7 |
| 100*7-2孔/Holes | 100 | 7 |
